About this product
Overview

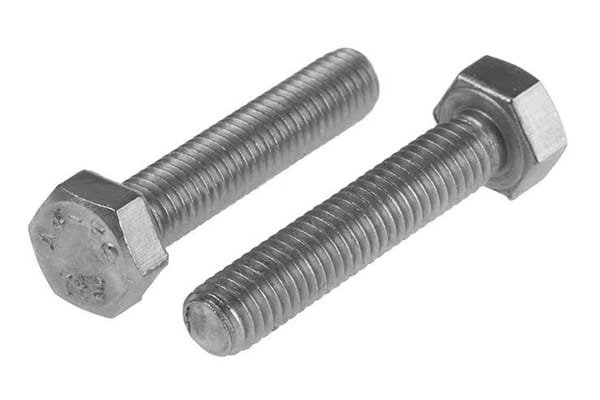

High-strength hex head bolts carry structural and machinery loads in steel plants, conveyor galleries, crane girders and fabricated structures. S A Engineering manufactures them in Bhilai with matching hex nuts, in diameters from M12 to M64 and lengths up to 500 mm, with the thread pitch as per IS 1363.
Each lot is made to the diameter, length, thread length and strength grade on your drawing or purchase order, so the bolts suit the joint they are meant for rather than the nearest catalogue size.
Typical applications
- Columns, beams and bracing in plant buildings and steel structures
- Machinery and equipment mounting in steel plants, mines and workshops
- Conveyor, crusher and material-handling frames
- Fabricated assemblies and maintenance replacements
Specification
| Size range | M12 to M64 |
|---|---|
| Thread pitch | As per IS 1363 (ISO metric coarse) |
| Length | Up to 500 mm |
| Head | Hexagon |
| Supplied with | Matching hex nut |
| Strength grade | As specified on the drawing or order |
| Made to | Customer specification / drawing |
What to send with your enquiry
- Diameter and length, for example M24 × 150
- Thread length, or full thread if required
- Strength grade or property class
- Finish or coating
- Quantity of bolts and nuts, and whether washers are needed
Not sure which grade you need? Our guide to bolt property classes explains the markings, and IS 1363 hex bolts explained covers sizes and thread pitch.
