About this product
Overview

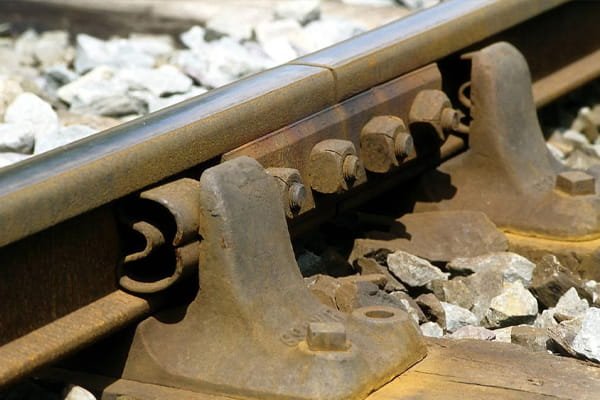

Fish bolts clamp a pair of fish plates to the web of two rail ends, holding a rail joint in line and transferring load across the gap. Because they sit in the most heavily worked part of the track, they have to match the drawing exactly — the bolt diameter, head and neck shape, thread and nut all follow the RDSO drawing the railway specifies.

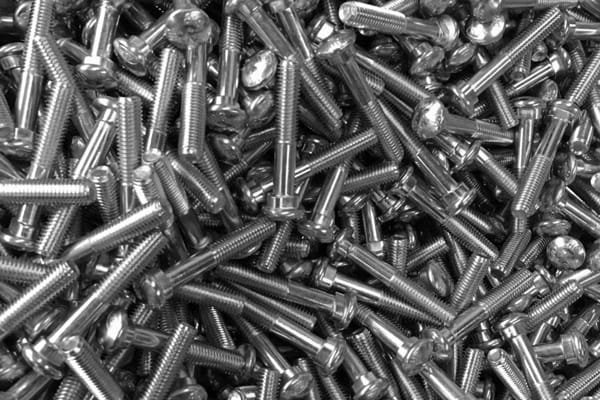

S A Engineering manufactures fish bolts with nuts to RDSO/T-1899 in sizes from M18 to M25. We also make fish bolts to RDSO/T-11501 and RDSO/T-11503, so mixed requirements can be supplied together.
Where they are used
- Fish-plated rail joints on running lines and sidings
- Track renewal and maintenance work by railway divisions
- Track contractors executing railway and industrial siding projects
- Steel plant and colliery sidings built to railway standards
Specification
| Drawing | RDSO/T-1899 |
|---|---|
| Size range | M18 to M25 |
| Supplied with | Nut |
| Made to | The drawing number and alteration quoted on the order |
What to send with your enquiry
- RDSO drawing number and alteration
- Size and length, if the drawing covers more than one
- Quantity of bolts with nuts
- Inspection requirements named in your tender or order
- Delivery location and required date
Need other track fasteners as well? See track bolts for points & crossings and railway plate screws, or read our guide to fish bolts in rail joints.
